A cabinet sign, also called a box sign or wall sign, is an enclosed illuminated sign structure that displays a business name, logo, or message inside a rigid housing. Letters and graphics sit within the cabinet face, which can be lit from the inside or left non-illuminated. Cabinet signs are one of the most common forms of commercial building signage because they offer a large, continuous copy area at a lower cost than individually fabricated letters.
The cabinet itself is built from aluminum, with a translucent or opaque acrylic face. Where the copy or graphic needs to be visible at night, the acrylic face is illuminated from inside the cabinet using LED modules. Where illumination is not required or not permitted, the same cabinet structure can be built non-illuminated.
Pro-Care Sign fabricates cabinet signs in the configuration that fits the property, budget, and sign criteria:
| Configuration | How It Works |
|---|---|
| Illuminated (Internally Lit) | LED modules inside the cabinet illuminate a translucent acrylic face. The background, the copy, or both can be the illuminated element, depending on design. |
| Non-Illuminated | The cabinet structure and face material remain the same, without an internal light source. Used where landlord criteria or sign ordinance restrict illumination, or where daytime visibility is sufficient. |
| Routed Push-Through Face | Copy is routed out of an aluminum face panel, and a separate acrylic layer is pushed through from behind to create raised, illuminated lettering. Often specified by landlords who do not permit a standard flat acrylic cabinet face. |

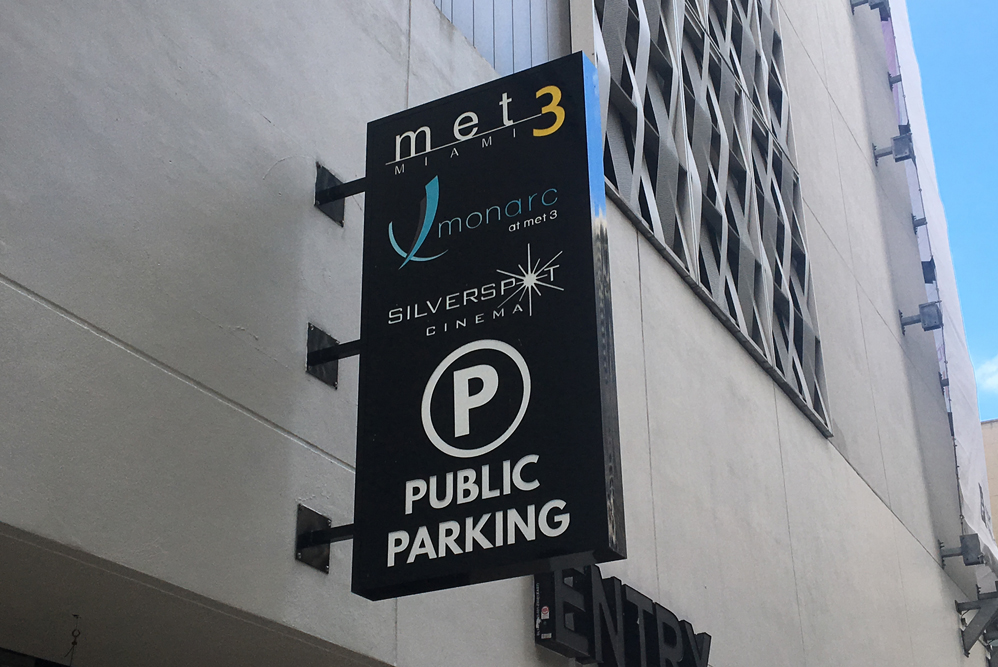

| Double-Sided (Blade) Cabinet | The cabinet is mounted perpendicular to the building rather than flush against it, illuminated on both faces. Used for businesses on pedestrian corridors where visibility from both directions matters. |
Cabinet signs and channel letters both serve as primary building identification, but they solve different problems. A cabinet sign is the better choice when the design includes small letter sizes, dense copy, or detailed graphical elements that would not translate well into individually fabricated channel letters. Because the entire face of a cabinet sign is one continuous illuminated surface, it can carry more visual information than a row of separate letters.
For businesses that want dimensional, sculptural lettering with more visual depth, Channel Letters are generally the stronger option. Cabinet signs are the more practical choice when budget, complexity, or copy density make channel letters impractical.

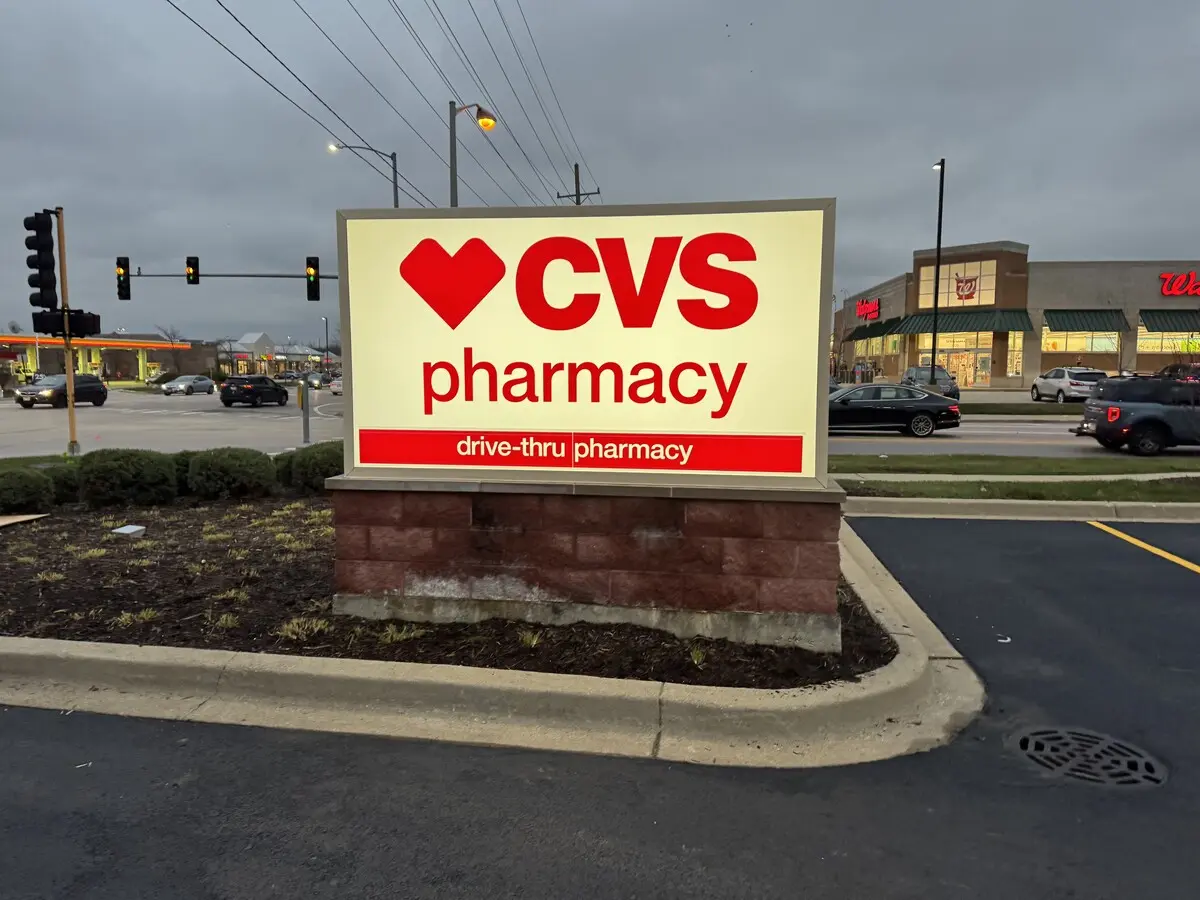

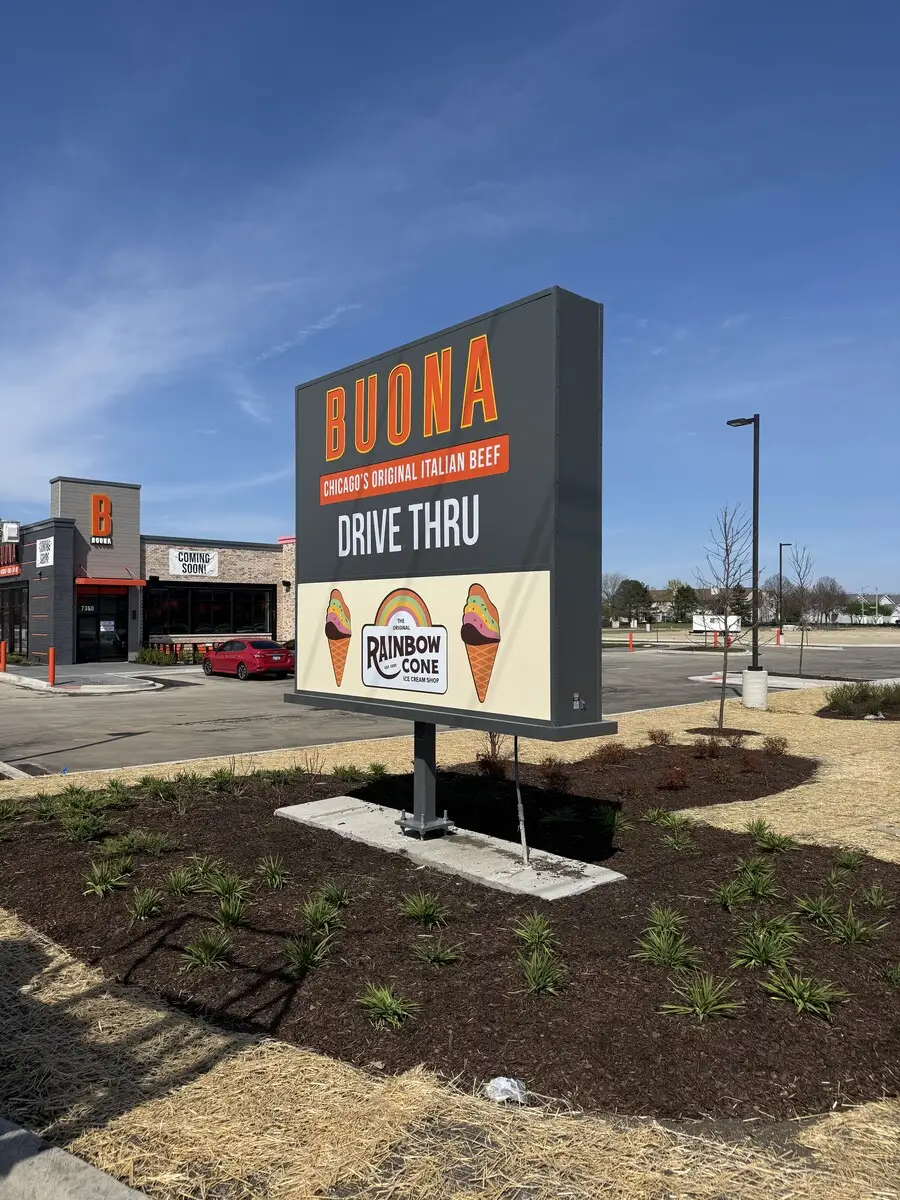

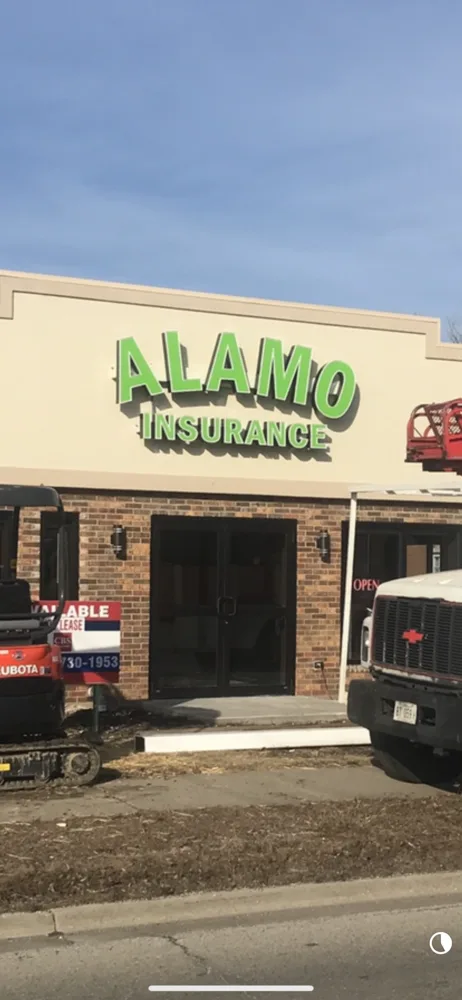

Pro-Care Sign has fabricated and installed cabinet signs for businesses across the Chicago area, including Alamo Insurance, CVS Pharmacy, Buona Beef, and T-Mobile. The same fabrication standards and permitting process that serve national accounts apply to every project we take on.
Pro-Care Sign visits the location to measure the mounting area, assess the building facade, and document any applicable sign criteria.
A scaled rendering shows the cabinet sign design, size, and face graphics on your building for review.
Cabinet signs, particularly illuminated ones, typically require a sign permit and an electrical permit from the City of Chicago. Pro-Care Sign manages this as a licensed Illinois electrical contractor.
The cabinet is fabricated in-house from aluminum, with the acrylic face and LED illumination installed and tested before shipment.
Installed and wired by Pro-Care Sign's licensed technicians.
From approved design to completed installation, a cabinet sign project typically takes five to six weeks.
| Sign Type | How It Compares |
|---|---|
| Channel Letters | Individually fabricated dimensional letters. More visual depth and a more premium appearance, at a higher cost than a cabinet sign of similar size. |
| Dimensional Letters | Non-illuminated 3D letters. A lower-cost alternative when illumination is not required and a dimensional look is still desired. |
| Electronic Message Centers | Programmable LED displays. Higher cost than a static cabinet sign, but the message can be changed without replacing the sign face. |
Every cabinet sign we build is permitted, fabricated, and installed by a licensed Illinois electrical contractor, whether illuminated or non-illuminated.
Pro-Care Sign fabricates and installs cabinet signs for businesses that need a large, legible sign at a practical cost, from single storefronts to churches, schools, and service centers. We serve Chicago and the surrounding suburbs, including Skokie, Niles, Palatine, Northbrook, Schaumburg, Downers Grove, Arlington Heights, Wheaton, Elmhurst, Glenview, Hinsdale, Elk Grove Village, Oak Brook, Streamwood, Des Plaines, Mt Prospect, Berwyn, Hoffman Estates, and Morton Grove.
A cabinet sign is a single enclosed box housing a translucent or opaque face with the business name and graphics on it. A channel letter sign is made of individually fabricated, dimensional letters, each with its own illumination. Cabinet signs are generally more cost-effective and better suited to dense copy or detailed graphics, while channel letters offer more dimensional depth.
Cabinet signs can be built either illuminated or non-illuminated. In an illuminated cabinet, LED modules light the interior, and the copy or background is visible through a translucent acrylic face. Non-illuminated cabinets use the same structure without an internal light source.
In most cases, yes. A sign permit from the City of Chicago Department of Buildings is generally required to place a sign on a building or place of business. Illuminated cabinet signs also require an electrical permit. Pro-Care Sign manages both as a licensed Illinois electrical contractor.
Yes. Double-sided, or blade-style, cabinet signs are mounted perpendicular to the building and illuminated on both faces. This configuration is common for businesses on pedestrian corridors where visibility from both directions of foot traffic matters.
The LED illumination in a cabinet sign typically lasts three to five years under normal use. The lifespan of the cabinet structure itself varies considerably depending on weather exposure and maintenance, and can range from well under a decade to significantly longer.
Ready to move forward with a cabinet sign? Send us your storefront details and we'll scope the design, permits, and installation.
